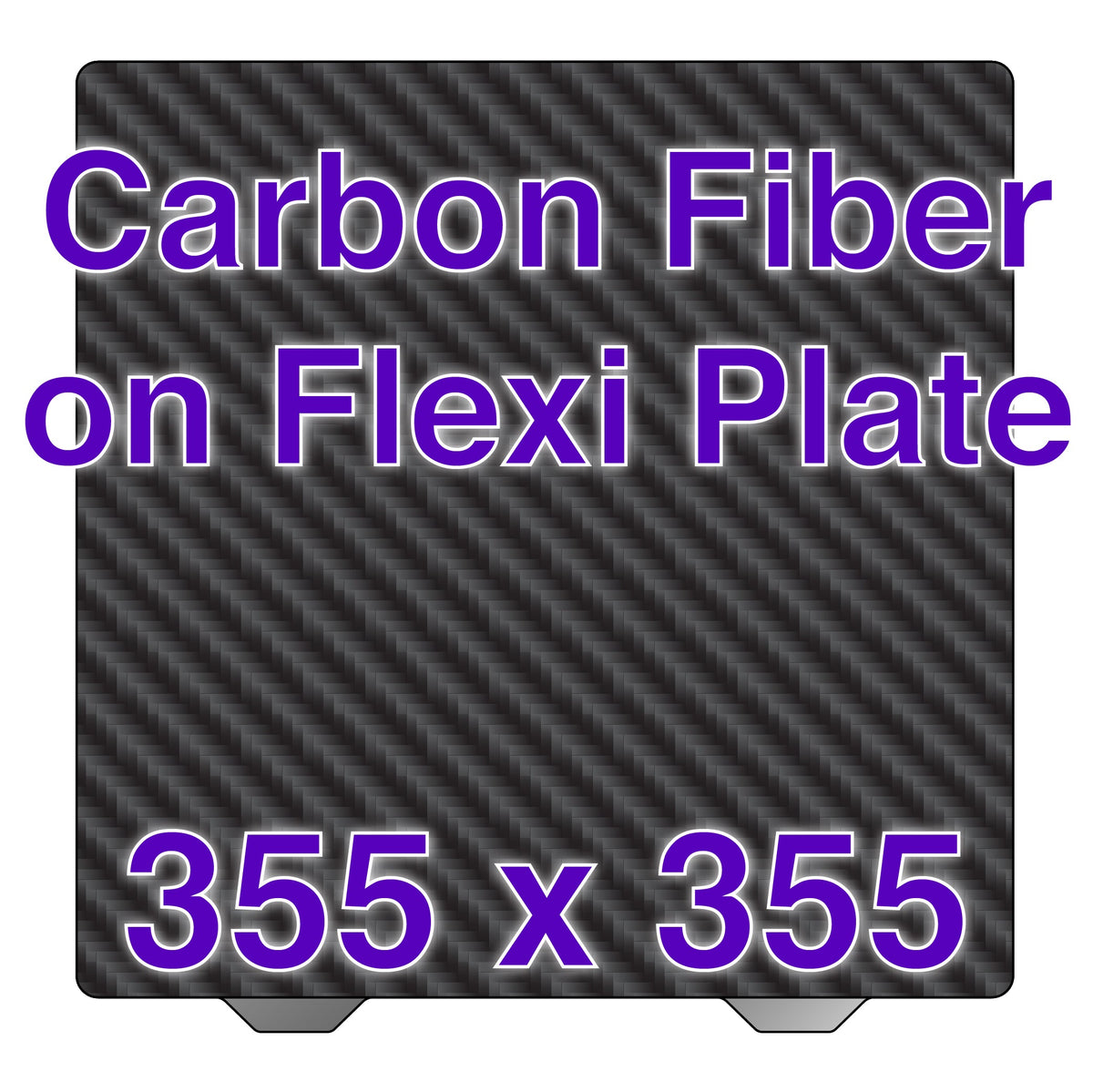

Wham Bam carbon-fiber Flexi Plate labeled 355 x 355 mm

Manufacturer printer compatibility chart

Wham Bam carbon-fiber Flexi Plate 355 x 355 mm showing plate outline

Flexing carbon-fiber plate to release an example purple print; print not included

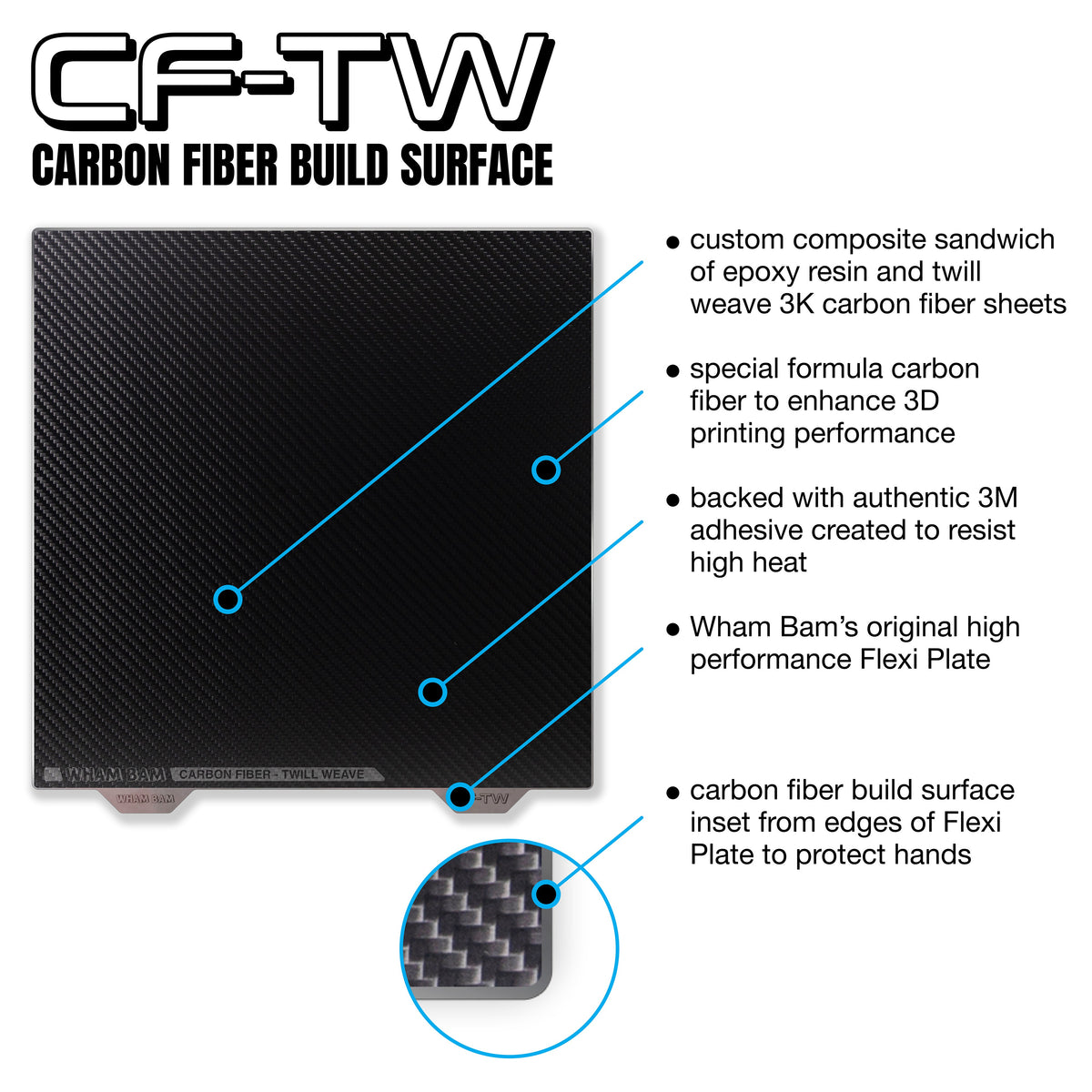

Carbon-fiber build-surface construction diagram

Manufacturer filament and temperature reference chart for carbon-fiber surface

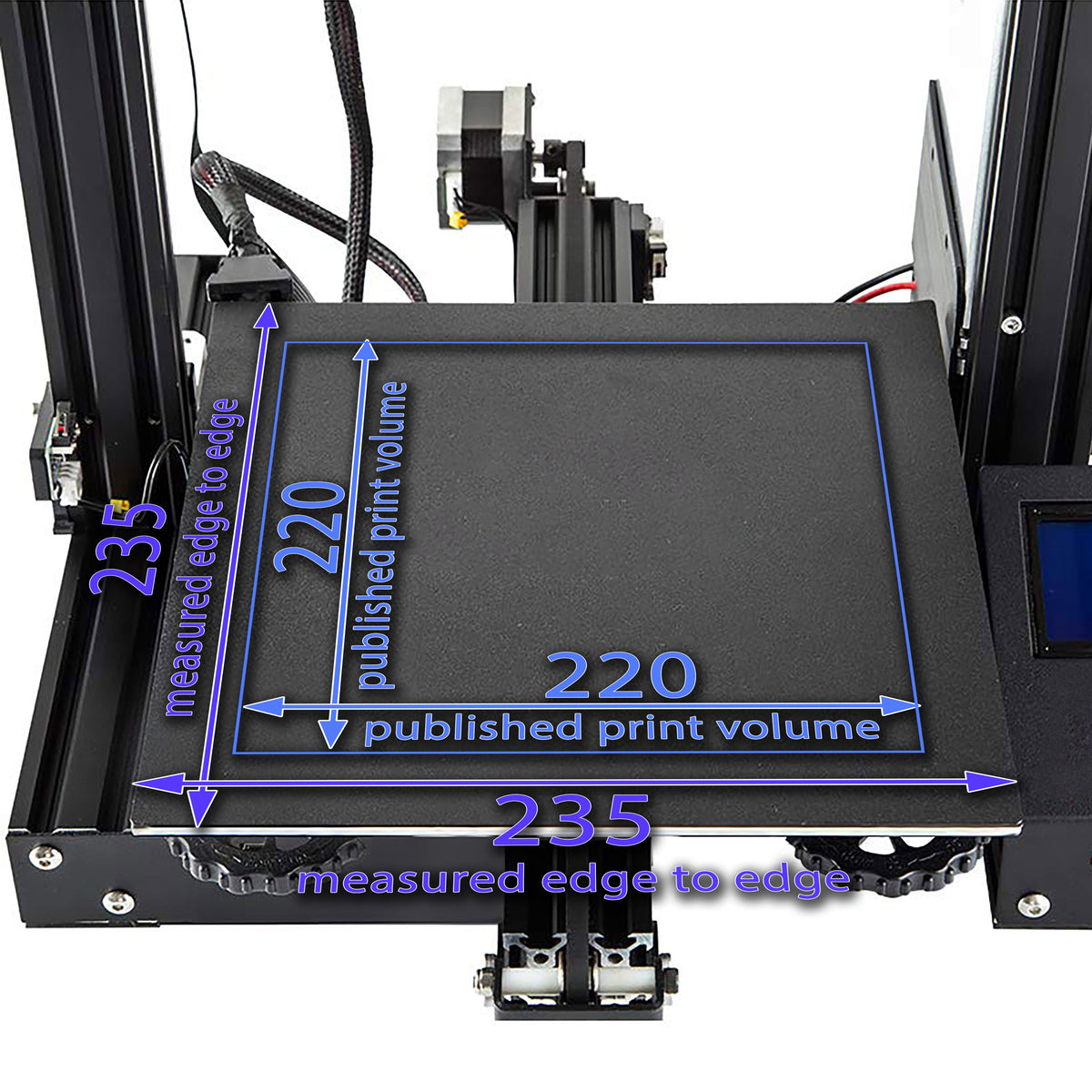

Example showing how to measure a printer bed; printer not included

Wham Bam Systems

Wham Bam Flexi Plate with Carbon Fiber - Sovol SV08 - 355 x 355

Name: Wham Bam Flexi Plate with Carbon Fiber - Sovol SV08 - 355 x 355
Brand: Wham Bam Systems
SKU: PI_355_355_CF
Price: 98.99 USD
Availability: InStock

$98.99

A replacement build plate for the printer models and dimensions listed below. Match the exact plate size, corner shape and alignment features to your printer before ordering. The printer is not included.

Brand: Wham Bam Systems
SKU: PI_355_355_CF

Manufacturer specifications, compatibility and care

Fits: Sovol SV08 and VORON Design 350 V2

(Please see full printer list below on the 'Fits & Contents' tab)

Our Carbon Fiber Build Surfaces are crafted from high-end, authentic carbon fiber composite panels, expertly bonded to our premium Flexi Plate using genuine high-temperature 3M adhesive. With proper care and use, this surface is built to last for many years.

The carbon fiber composite is meticulously engineered by layering woven 3k carbon material, which is then impregnated with epoxy resin. This 0.4mm thick packet is compressed in a high-precision mold within an autoclave, where vacuum and heat are applied to remove excess resin. The result is a lightweight yet incredibly robust surface, similar to those used in aerospace, automotive, and motorsport applications.

Our specially formulated carbon fiber composite offers significant advantages for 3D printing. Unlike traditional thermoplastic build surfaces like PEI, PEX, and PC, carbon fiber is a thermoset polymer, meaning it cures through a chemical reaction rather than heat and cannot be reformed by heat. This property ensures that the surface does not bond excessively with filaments, even those that require higher temperatures.

Virtually indestructible, our Carbon Fiber Build Surface can withstand the rigors of 3D printing without chipping or breaking. You can print almost any type of filament on it without damaging the surface. The only potential risks are a hot nozzle pressing directly onto the surface with force at temperatures above 150°C or printing thick layers at over 270°C.

This build surface not only enhances the functionality of your 3D printer but also adds a professional touch. It’s easy to use with minimal preparation, attracts most filaments without the need for adhesives, and for those that do require them, only minimal adhesive is needed. The best part? After cooling, your prints will often release on their own or require just a slight flex to remove.

+Not an Effects Sheet

We developed our authentic Carbon Fiber Build Surface for its incredible performance and durability. Please note, it does not leave a pronounced pattern effect like the imitation “carbon fiber' sheets. These imitation sheets have low melt points, so they are not recommended for most filaments and therefore are easily damaged and will have a short life, and were just made to get a certain look on the bottom face.

What surface finish should you expect? Our true Carbon Fiber leaves a very smooth surface with the slightest of pattern only when seen in the exact cross light.

Printer Fits:
• Sovol SV08
• VORON Design 350 V2

May fit:

• Sovol SV03
• Zortrax M300

Do you have a printer similar to what's listed under Printer Fits or May Fit?
If you have a printer similar to the one described above and believe our solution could work for your printer, please follow our easy instructions on measuring your build plate. Let us know if your printer matches our specifications or is even close! We’d love to hear about it, and you might even receive a discount on Wham Bam® merchandise for your efforts. Click here for more info.

Measure Your Build Plate

+Contents & Tech Info

Includes:

Flexi Plate (0.4 mm) with Carbon Fiber Build Surface (0.4 mm)

**Flexi Plate only, no Magnetic Base included**
Find the Magnetic Base here.

Size: 355 x 355 mm

Note: You should already have a Magnetic Base installed on your printer as this is needed to use a Flexi Plate. Level bed after install.

View PDF Installation instructions here.

+First Use & Cleaning

The only preparation needed is to wipe it down with isopropyl alcohol (IPA) at a concentration of 90% or higher. Use fresh paper towels for this step—avoid using microfiber rags, shop rags, or any fabric that's been used before.
Alternatively, you can use strong dish soap and rinse thoroughly with water to remove any oils.
Ensure the sheet is thoroughly cleaned before using and avoid touching the surface with your hands to prevent leaving fingerprints.
It’s recommended to wipe down the sheet between prints to keep the build surface free from contaminants and to prevent residue buildup from previous prints.

+Tips for best use

Bed Temperature:

Heat the bed to the recommended temperature listed in our table, see product photos. A base temperature of 50-70°C works for most filaments that don’t require higher bed temperatures.

Carbon Fiber sheets may take longer to heat up than other build surfaces. This is especially noticeable on the Bambu machines which tend to send files to print before the surface is fully heated.

If you have an issue with adhesion you may want to consider preheating the bed to the desired temperature for about 5 minutes before starting the print. This can help resolve most adhesion issues. Some users found that adding a gcode script to the slicer start script helps to automate this.

It usually is placed after the M140 and M190 commands

For example:

M140 S[bed_temperature_initial_layer_single] ;set bed temp

M190 S[bed_temperature_initial_layer_single] ;wait for bed temp

Bed Leveling:

For printers with touch or tap bed leveling systems, set the nozzle temperature to no more than 140°C during leveling to avoid damaging the surface. While some systems tap lightly and work fine up to 170°C, others tap with more force and may leave marks at temperatures as low as 150°C.

Hot End Temperature:

It’s advisable to keep the hot end temperature for the first layer at or below 270°C to prevent damage to the surface.

If you notice any light distortions on the surface, they will likely dissipate if the bed is reheated to the same temperature and left for 15-30 minutes.

Adhesives:

This build surface is meant to be used with adhesion promoters like: Vision Miner Nano Polymer, Glue Stick, or Magigoo for most filaments. Certain filaments like PETG and TPU usually do not need any other adhesives. We have found that certain filaments (like PLA and PC CF) and brands stick without adhesive and you can experiment to find your best settings and functionality.

If you’re using filaments prone to significant shrinkage, such as ABS and Nylon, it’s recommended to use an enclosure like the Wham Bam HotBox to maintain a controlled ambient temperature of around 40-50°C.

+Downloads

FDM Flexi Plate Holder

Attention:
Please be aware that this is our only build plate designed for one-sided use. Carbon fiber is electrically conductive, and its woven fabric acts as a strong magnetic shield. If you try to flip the plate and use it upside down, the carbon fiber layer will interfere with the magnetic connection between the metal Flexi Plate and the magnetic base, resulting in poor hold.

+Q: Why aren't you selling the build surface by itself?

A: We want to offer the highest quality and flatness possible by installing the proper industrial equipment. We recognize that during self installation one can impart a curvature between the two rigid panels and throw off the whole build surface tolerance.

+Q: What surface finish should you expect?

A: Our true Carbon Fiber leaves a very smooth surface with the slightest of pattern only when seen in the exact cross light.

+Q: How does the Carbon Fiber Build Plate compare to our other build plates?

A: We are very proud of our PEX and Powder Painted PEI as well as our new Carbon Fiber Build Surfaces and find that each has its place in your lab!

Use our Powder Painted ULTEM PEI to have a great textured print surface. It is a very robust surface that is not easy to damage. Use our PEX for a wonderful smooth bottom finish and easy to print and release for most every filament. The PEX does require a bit more research and process to use well, and you must be careful when printing PETG, some ASA and other materials which may bond too well. The new Carbon Fiber Build Surface is our top of the line smooth build surface solution that is very robust and does not have issues bonding with certain filaments.

Build Surface Chart

+Q: Are there special filaments I would want to get this new Carbon Plate for and why?

A: Yes! PETG, PEI, and PEEK all have similar molecular composition to PEI build surfaces and Wham Bam PEX and therefore tend to stick and bond and may cause damage. The polymer in the Carbon Fiber is a completely different family of plastic that does not bond with the above and other, so if you plan on printing PETG, PEI, PEEK, and even ASA you should get this build surface!
